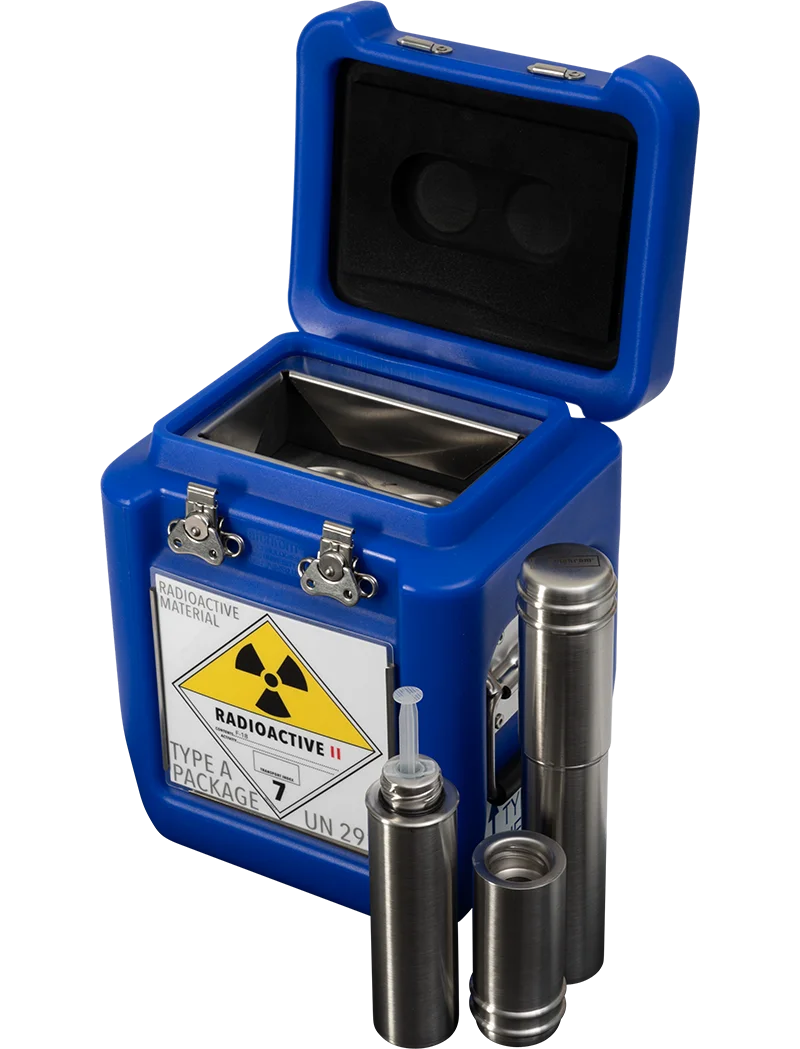

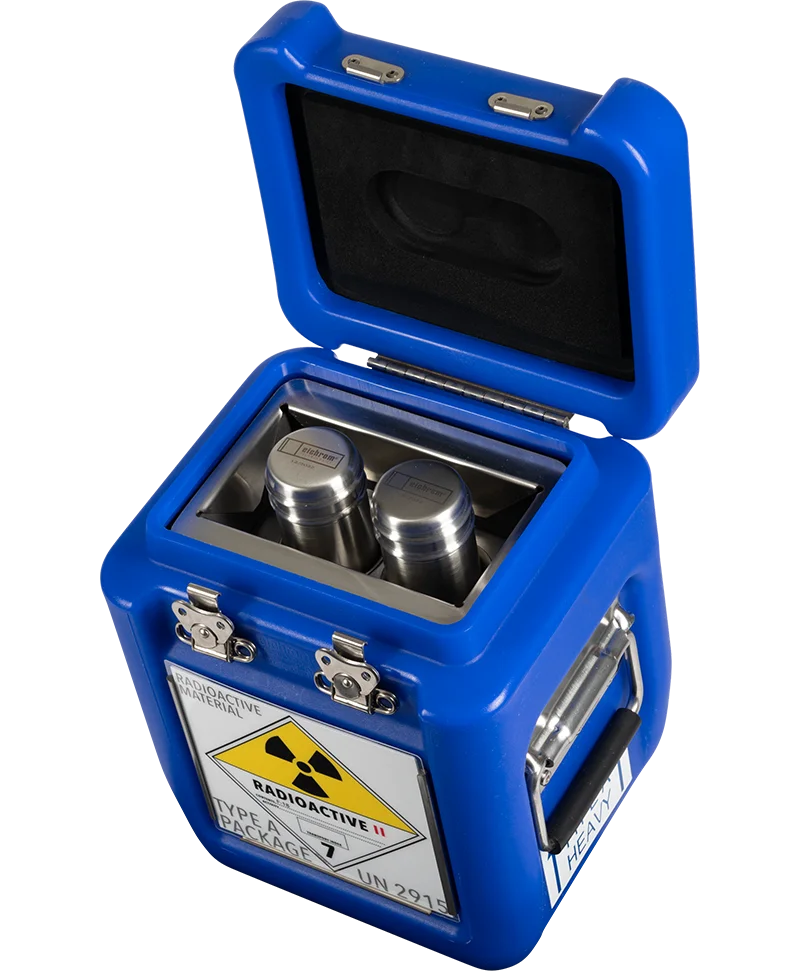

PET Shield Syringe Type A Shipping System
Part Number: SH-PET-SYS-UDS
System Components:
SH-PET-CASE-UDS (Shielded Case – QTY 1)
- Polyethylene shell with polyethylene foam cushioning
- Heavy-duty zinc-plated steel hinge, handles, and latches
- Two place contoured lead casting with brushed stainless steel sleeves and cover plates * No exposed lead
- Zinc plated steel Label Frames
- No clear plastic envelope is required for shipping labels
- Overall Size: 10 in. X 8.5 in. X 12.25 in. tall
- A quarter turn thread opens or closes the lead pig, reducing handling time
SH-PET-UDS (PET Shielded Syringe Container – QTY 2)
- Two-piece assembly
- Fits two 3-5 cc dose syringes containing high-energy radionuclides such as FDG F-18 with 1.5 inch needles attached
- Triple start threads for ¼ turn operation
- All surfaces brushed stainless steel * No exposed lead
- O-ring seal
- Overall Size: 2.15 in. diameter X 10.60 in. tall
- A quarter turn thread opens or closes the lead pig, reducing handling time
SH-PET-LBL (Shipping Label– QTY 2)
- Yellow II laminated shipping labels
- Two sided, Yellow II and Empty
Regulations
- Meets DOT Yellow II Type A packaging requirements when shipping up to 955 mCi (35.3 GBq) and 610 mCi (22.6 GBq) of 18F (FDG)
- Meets IATA Dangerous Goods Regulations, 64th Editions Sections 5.0.4.3, 10.6.0 and 10.6.1 thru 10.6.3.5
How Eichrom Can Help
Eichrom has a team of radiochemists and shielding engineers standing by ready to help solve your unique radiological challenges. For more information or to get in touch, contact us to set up a consultation with an expert or request a quote.
